P-AVN-2E

IPMX H.264/H.265 Encoder

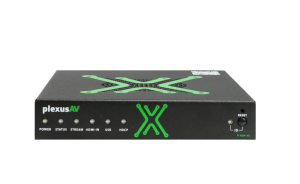

P-AVN-4E-Front-1024x627

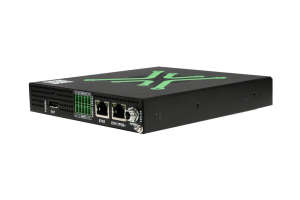

P-AVN-4E-Rear-corner-1024x683

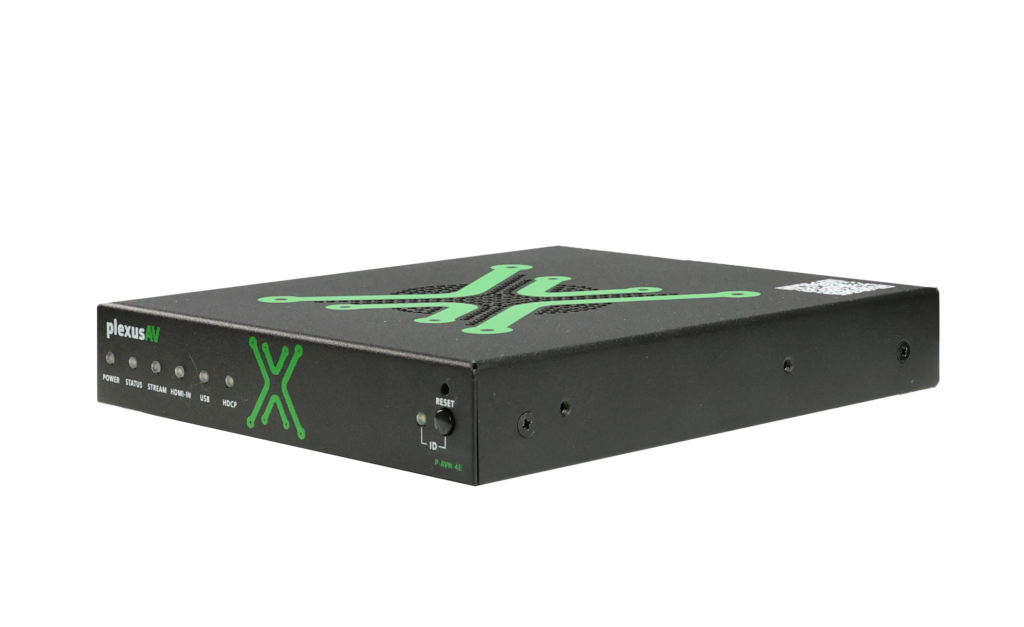

P-AVN-4E-Front-corner-1024x627

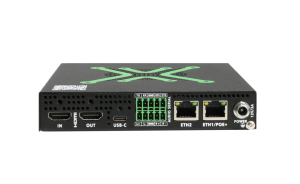

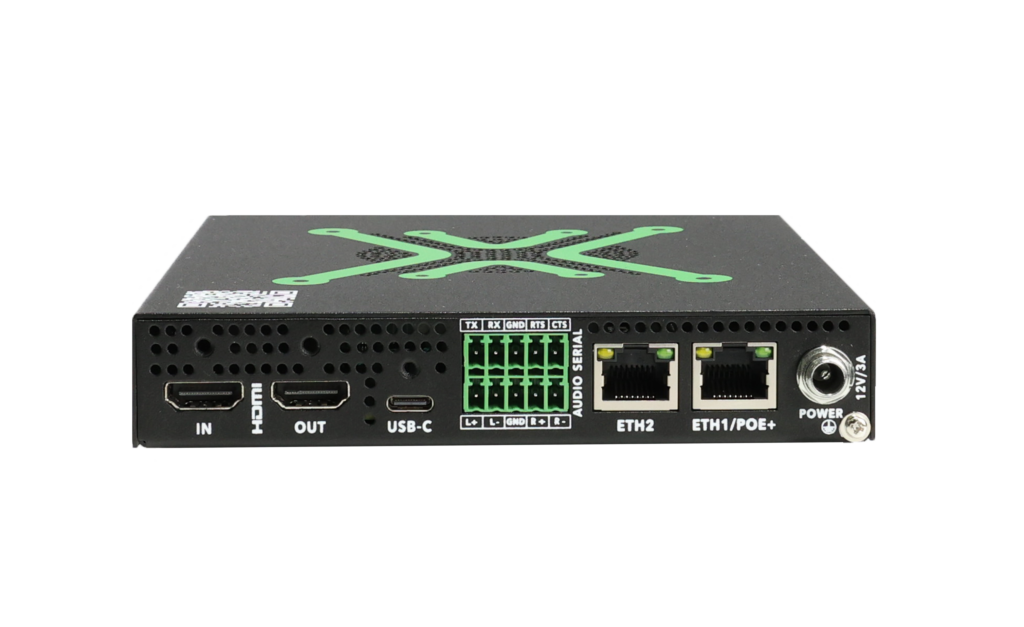

P-AVN-4E-Rear-1024x627
P_AVN_4_5
P_AVN_4_3
The P-AVN-2E IPMX Encoder delivers professional-grade video performance in a compact design. Purpose-built for encoding HDMI or USB-C inputs, it converts high-resolution signals into efficient, low-latency IP streams using H.264 or H.265 compression. With PoE+ power, advanced audio integration, and an intuitive web interface, the P-AVN-2E empowers reliable, real-time video delivery across classrooms, conference rooms, and production environments—all while ensuring seamless compatibility with IPMX-based AV networks.
Datasheet
Contact us

Why Choose Plexus?

✔

IPMX-Based Open Standards

Built on IPMX protocols for future-proof AV-over-IP deployment.

✔

Purpose-Built Encoding

Encode HDMI or USB-C video up to 4K60 using H.264 or H.265 compression for low-latency, high-quality streaming.

✔

Flexible Network Connectivity

Dual gigabit Ethernet ports with PoE+ power simplify installation and deliver reliable performance in any environment.

✔

Compact, Installation-Ready Design

The small, lightweight form factor easily mounts behind displays, under tables, or in rack systems using optional accessories.

✔

Advanced Audio Integration

Support for AAC, Linear PCM, and optional Dante ensures professional-grade audio quality across all workflows.

✔

Easy-to-Use Interface and Advanced API

Designed for quick deployment and ease-of-use, with advanced API control via PlexusAV Visual Array or integration into existing network management systems using REST API.

Key Features

▶

Flexible Network Connectivity

  • ✔

    1Gbps Low-Latency Streaming: Delivers high-quality MPEG compression for efficient IP video transport.

  • ✔

    Dual Ethernet Ports: Two RJ45 ports support standard network or PoE+ installations.

  • ✔

    PoE+ Power Delivery: Simplifies deployment with single-cable connectivity for both power and data.

▶

Versatile Input & Output Options

  • ✔

    HDMI & USB-C Video: Accepts HDMI 2.1 with HDCP 2.3 and USB-C with DisplayPort for flexible signal sources.

  • ✔

    Analog & Digital Audio: Includes balanced analog input and support for AAC, Linear PCM, and optional Dante audio.

▶

Efficient Video Encoding

  • ✔

    IPMX Standards Compliance: Ensures seamless integration into interoperable, standards-based AV networks.

  • ✔

    Site-to-Site Transmission: Perfect for applications requiring lower bandwidth consumption over the network infrastructure.

▶

Compact and Install-Ready Design

  • ✔

    Slim Form Factor: Mounts easily behind displays, under tables, or in control rooms.

  • ✔

    Mounting Accessories: Compatible with 1RU, 4RU, and wall-mount kits for any environment.

Applications

The P-AVN-2E is built for environments where high-quality encoding and IP-based video delivery are essential. Supporting HDMI and USB-C inputs with H.264/H.265 compression, it enables efficient, low-latency video transmission across 1Gbps networks. Designed on IPMX standards, the P-AVN-2E provides a scalable, cost-effective solution for education, corporate AV, and production workflows that demand reliability and interoperability.

Educational & Corporate AV

Perfect for classrooms, meeting rooms, and lecture halls requiring high-quality encoding and network-based AV distribution.

Digital Signage

Distribute synchronized content to multiple displays in transportation hubs, retail locations, and large public venues.

Live Production

Deliver smooth, ultra-low latency video transmissions for live events and on-site production workflows.

Virtual Events & eSports

Ideal for eSports, hybrid events, and live-streamed productions requiring high-quality, real-time encoding for online audiences.

Broadcast & Production

Encode video feeds for contribution or distribution over various protocols. When paired with the Stream Conversion Gateway, streams can be delivered using SRT or converted between NDI®HX, RTSP, RTMP, and MPEG-TS.

型番

Product Code Description
P-AVN-2E
  • 1G IPMX, IPMX H.264/265 Low Latency Encoder
P-AVN-M-WAL
  • Table and wall mounting bracket (set of 2), compatible with P-AVN-2/3/4/2E/2E
P-AVN-M-1RU
  • Rackmount, 1RU, can hold up to 3x P-AVN-2/2E/2D/4 units or 2x P-AVN-3
P-AVN-M-4RU-KIT
  • Rackmount Kit Frame, 4RU, holds 14x P-AVN-2/2E/2D/4 units, includes 14 sets of rackmount ears and 14 blindplates
P-AVN-PSU-TYPE-A-US
  • Type A power supply for P-AVN-2/4 (commonly used in the USA, Canada, Mexico, China, etc.)
P-AVN-PSU-TYPE-C-EU
  • Type C power supply for P-AVN-2/4 (commonly used in Europe, South America, Asia, etc.)
P-AVN-PSU-TYPE-G-UK
  • Type G power supply for P-AVN-2/4 (commonly used in UK, Ireland, Singapore, etc.)
