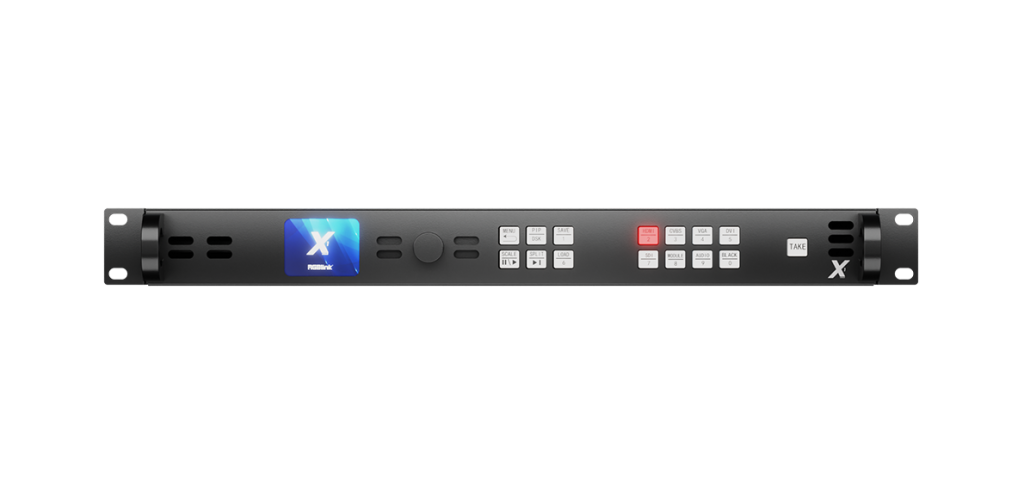

X1 Gen2

Broadcast-grade LED Video Processor

After 7 years, X1 iteration happens and Gen2 is released, refine and enhance based on market feedback and trends.
As a leading broadcast video processor, X1 solids its DVI output resolution up to 2048×1152@60 and customized resolution capacity. And it offers an optional SDI module to meet studio and rental requirement, also extends its broadcast ability to multiple test pattern build in, seamless switching between inputs, auto detection for VESA and SMPTE input standard, audio embedded and de-embedder.
X1 is dedicated for LED display processor and compatible with common LED control system, including Novastar, Colorlight, Linsn, Mooncell and RGBlink.

Key Features

Order Codes

Main Unit
Product Code Description
110-0002-01-0       X1 Gen2
  • Video Inputs
    • HDMI In/Loop: HDMI-A x2
    • DVI: DVI-I x1
    • VGA: DB15 x1
    • CVBS: BNC x1
  • Video Outputs
    • DVI: DVI-I x2
  • Audio I/O
    • Input L/R: RCA x2
    • Output L/R: RCA x2
    • Output: 3.5mm stereo jack x1
  • Communication
    • Serial RS232 input: RJ11 x1
    • Serial USB input: USB-B x1
110-0002-02-0       X1-S Gen2
  • Video Inputs
    • HDMI In/Loop: HDMI-A x2
    • DVI: DVI-I x1
    • VGA: DB15 x1
    • CVBS: BNC x1
    • SDI In/Loop: BNC x2(1 In|1 Backup)
  • Video Outputs
    • DVI: DVI-I x2
  • Audio I/O
    • Input L/R: RCA x2
    • Output L/R: RCA x2
    • Output: 3.5mm stereo jack x1
  • Communication
    • Serial RS232 input: RJ11 x1
    • Serial USB input: USB-B x1
